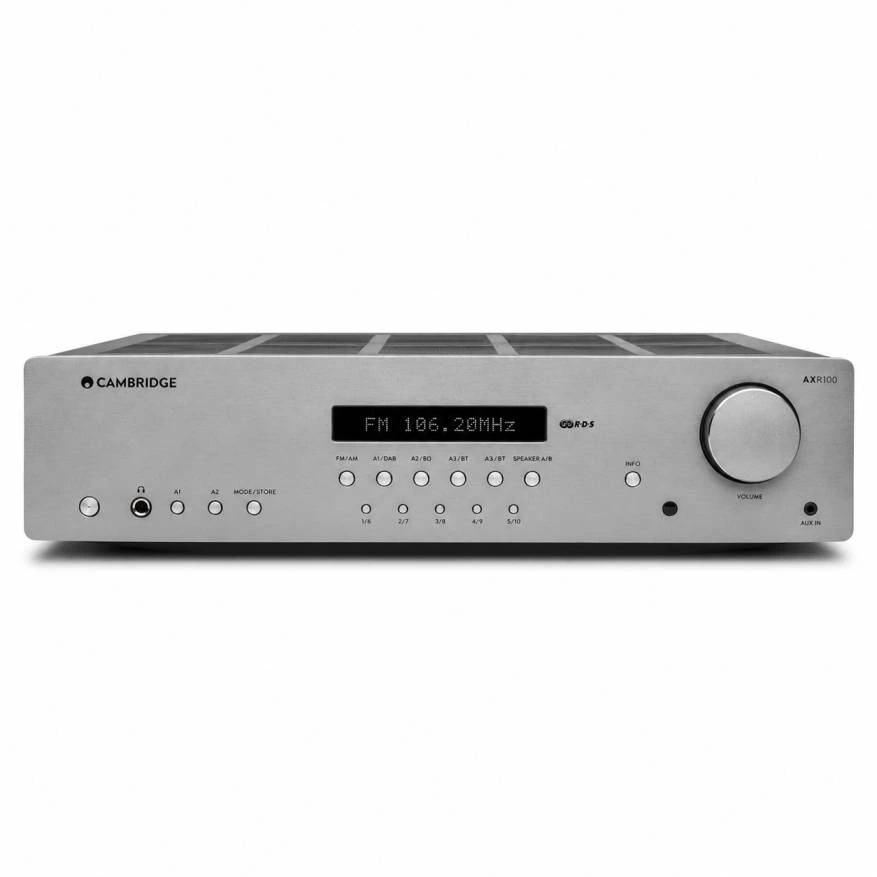

Cambridge Audio AXR100

FM/AM Stereo Receiver

The Cambridge Audio AXR100 is a powerful stereo receiver delivering 100W per channel into 8 Ohms, with an integrated FM/AM tuner, Bluetooth 5.0 and a built-in Moving Magnet phono stage. With multiple analogue and digital inputs, dual speaker outputs and a dedicated subwoofer output, it offers a flexible solution for music from radio, vinyl and digital sources.

Key Features

• 100W per channel into 8 Ohms
• Class AB stereo amplification
• Integrated FM/AM tuner
• Stores up to 40 radio stations
• Built-in Moving Magnet phono stage
• Bluetooth 5.0
• 3 pairs of RCA analogue inputs
• 1 × digital coaxial input
• 2 × optical digital inputs
• Dual speaker outputs
• Dedicated subwoofer output
• Record outputs
• 3.5mm headphone output
• LED dot-matrix display
• Bass and treble controls
• 430mm-wide chassis
• Remote control included
• Lunar Grey finish

Specifications

• Type: FM/AM Stereo Receiver
• Power Output: 100W per channel into 8 Ohms
• THD: <0.01% @ 1kHz, 80% rated power
• THD: <0.15%, 20Hz–20kHz, 80% rated power
• Frequency Response: 5Hz–50kHz ±1dB
• Signal-to-Noise Ratio: >82dB
• Input Impedance: 47kΩ
• Power Amp Damping Factor: >50
• Digital Inputs: 1 × S/PDIF coaxial, 2 × TOSLINK optical
• Digital Audio: 16–24-bit PCM, up to 192kHz
• Bluetooth: 5.0, A2DP/AVRCP, SBC
• Phono Stage: Moving Magnet
• Subwoofer Output: 200Hz, 2nd-order L+R
• Speaker Outputs: Dual speaker outputs
• Tuner: FM/AM
• Station Presets: Up to 40
• FM Tuning: 87.5–108MHz / 88–108MHz depending on region
• AM Tuning: 522–1629kHz / 540–1700kHz depending on region
• Maximum Power Consumption: 550W
• Standby Power Consumption: <0.5W
• Dimensions: 110 × 430 × 340mm
• Weight: 8.1kg
• Finish: Grey
• In the Box: AXR100 receiver, power cable, remote control, 2 × AAA batteries, FM antenna and AM antenna
