Description

Anthem – Authorised Dealer Information

Audio Trust is an Authorised Dealer for Anthem.
Purchase with confidence from Audio Trust to receive genuine Anthem products sourced through authorised channels, ensuring authenticity, reliable performance, and dependable after-sales support. Avoid unauthorised sellers to ensure you receive original products with proper manufacturer support.

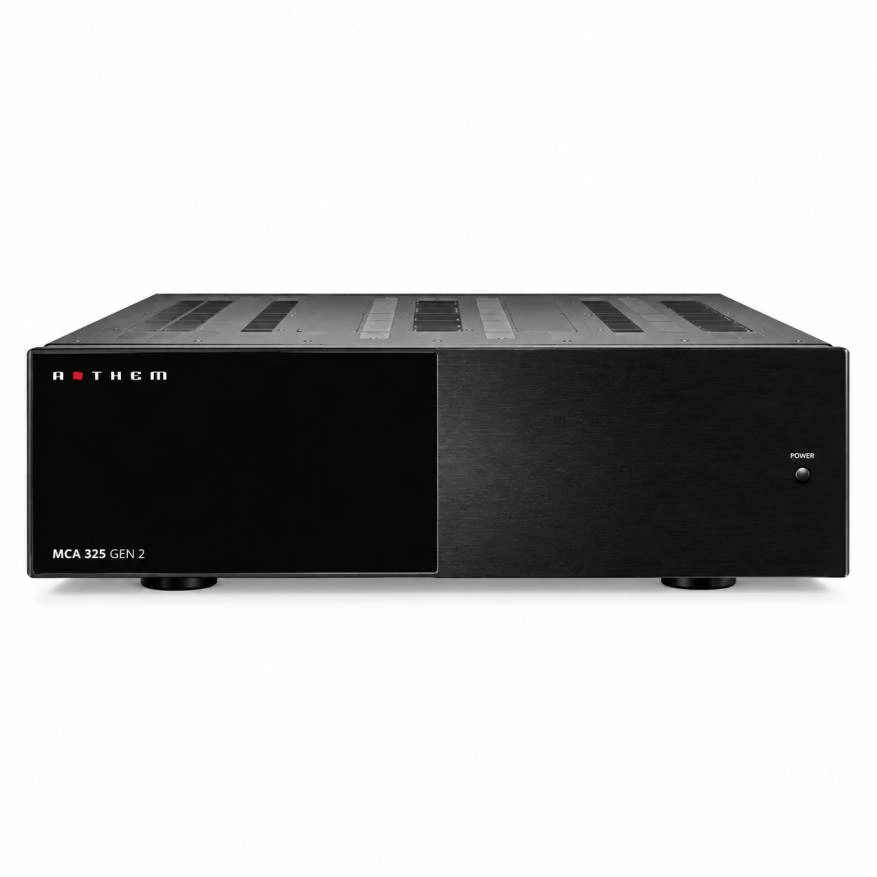

Anthem MCA 325 Gen 2

The Anthem MCA 325 Gen 2 is a high-performance 3-channel power amplifier designed for premium home theatre and high-end audio systems. Delivering 225W per channel into 8Ω, with substantial power into 4Ω and 2Ω loads, it combines a low-noise toroidal transformer, high-current bipolar output devices and Advanced Load Monitoring for powerful and reliable performance.

Key Features

• 3-channel power amplifier
• 225W per channel into 8Ω
• 400W per channel into 4Ω
• 600W per channel into 2Ω
• Custom low-noise, high-power toroidal transformer
• 8 high-current bipolar output devices per channel
• Advanced Load Monitoring (ALM™)
• Oversized aluminium heatsinks
• Redesigned circuit path with reduced internal cabling
• RCA and balanced XLR inputs
• Audiophile-grade binding posts
• Manual, trigger and signal-sensing power control
• 120dB signal-to-noise ratio
• Low standby power consumption
• Designed and crafted in Canada

Specifications

• Channels: 3
• Power Output: 225W/ch @ 8Ω
• Power Output: 400W/ch @ 4Ω
• Power Output: 600W/ch @ 2Ω
• Frequency Response: 20Hz–20kHz ±0.1dB @ 8Ω and 4Ω
• Frequency Response: 20Hz–20kHz ±0.2dB @ 2Ω
• Signal-to-Noise Ratio: 120dB
• THD + Noise: 0.0010% @ 1kHz, 0.002% @ 20kHz @ 100W
• Input Impedance: 10kΩ RCA / 15kΩ XLR
• Input Sensitivity: 1.5Vrms
• Voltage Gain: 29dB
• Slew Rate: 30V/μs
• Damping Factor: 300
• Power Bandwidth: 90kHz
• Dimensions: 17.25″ W × 6.625″ H × 18.125″ D
• Rack Height: 4U
• Weight: 43 lbs / 19.5kg
• Finish: Black
• Country of Manufacture: Canada
